- High quality FR4 can withstand high temperature soldering and re-work
- Standard 0.1" pitch holes enable compatibility with a large variety of components
- Each hole is electrically isolated for increased design flexibility
- Four mounting holes allow for easy fixturing
| Hole Pitch: | 0.1" |
| Hole Diameter: | 0.040" |
| Mounting Holes: | 4x - 0.125" |
| Surface Finish: | LF HASL |
| Temperature Rating: | -30°C to +100°C |
WARNING: California Prop 65

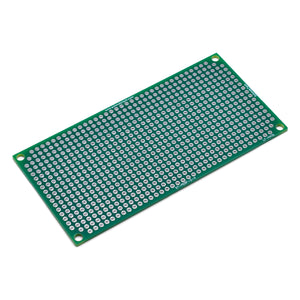

This perfboard is the perfect tool for quickly prototyping an electronic circuit or turning a breadboard prototype into something more permanent. These boards have an LF HASL surface finish and are made from high quality FR4 which can withstand high temperature soldering and re-work. The holes on this prototyping PCB are aligned to a standard 0.1" grid to enable compatibility with a large variety of electronic components. Each plated through-hole is electrically isolated from the other holes to allow for the highest degree of flexibility when laying out a circuit. Using solder, adjacent holes can be bridged to create electrical connections as needed. Both sides of this board have solder mask, making it easier to remove solder bridges when necessary.

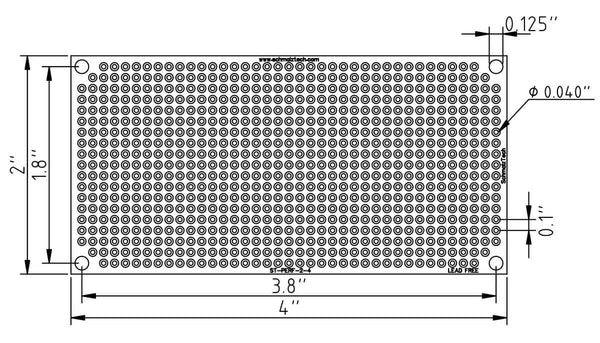

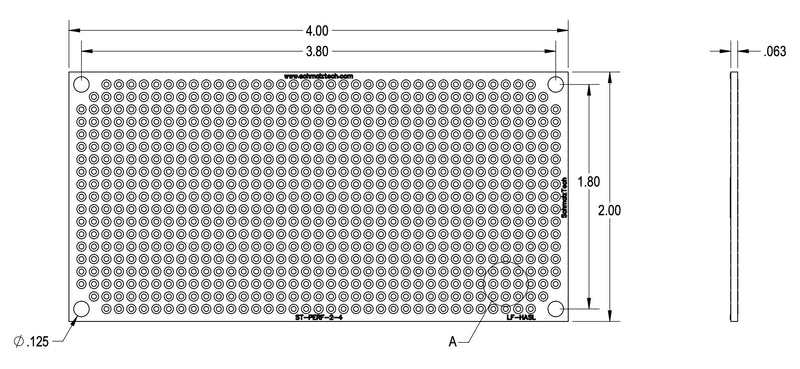

Mechanical Drawing
