- High quality FR4 can withstand high temperature soldering and re-work
- Standard 0.1" pitch holes enable compatibility with a large variety of components
- Rows are electrically connected for fast circuit creation
- Four mounting holes allow for easy fixturing
Hole Pitch: | 0.1" |
Hole Diameter: | 0.040" |
Mounting Holes: | 4x - 0.125" |
Surface Finish: | ENIG |
Temperature Rating: | -30Ā°C to +100Ā°C |
WARNING: California Prop 65
This protoboard is the perfect tool for quickly prototyping an electronic circuit or turning a breadboard prototype into something more permanent. These boardsĀ have an ENIG surface finish and are made from high quality FR4 which can withstand high temperature soldering and re-work. The holes on this prototyping PCB have a standard 0.1" pitch to enable compatibility with a large variety of electronic components. The space between the power rails and the adjacent rows is 0.15". Each hole is electrically connected to a row of holes to make building circuits fast and easy. See the drawing below for a detailed view of the electrical connections on this board. Both sides of this board have solder mask, making it easier to control solder flow and prevent unintentional bridges.

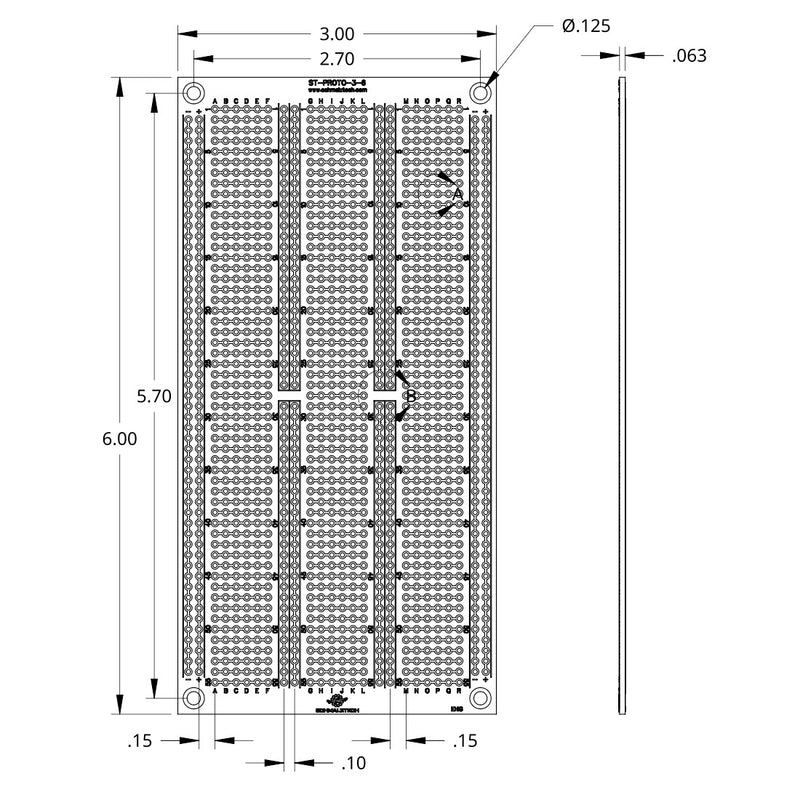

Mechanical Drawing
