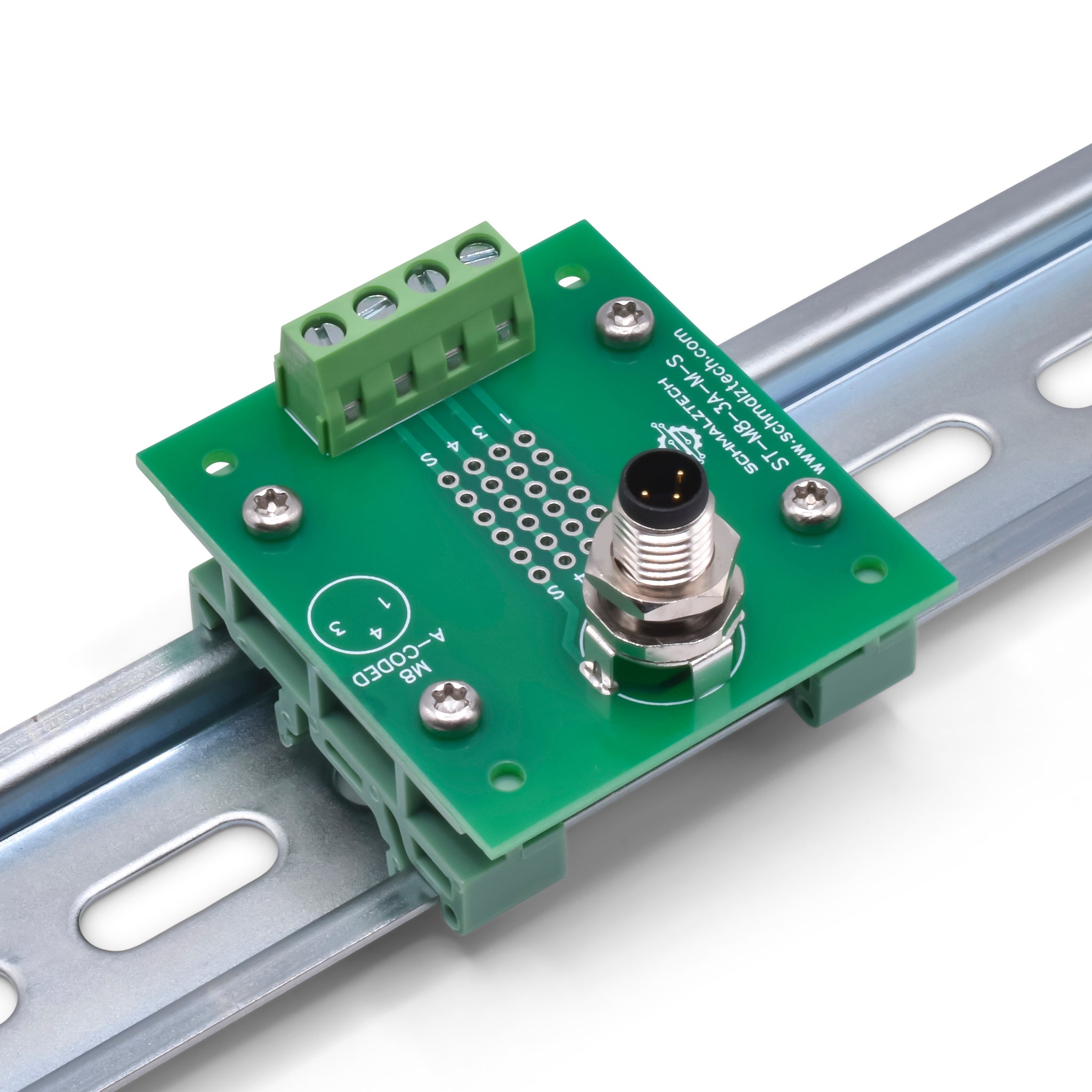

M8, 3-Pin, A-Coded, Male Breakout Board with DIN Clips
MPN: ST-M8-3A-M-S-DIN
Free Shipping on U.S. orders over $30.
- Breaks out all 3 contacts and shell
- Screw terminals for fast connections
- Prototyping area for in-circuit modifications
- Easy access for probing and debugging
- Easily mounts on 35mm DIN rail
| Wire Range (stranded): | 16-26 AWG |
| Wire Range (solid): | 16-26 AWG |
| Connector: | M8, 3-Pin |
| Coding: | A-Coded |
| PCB Surface Finish: | LF HASL |
| Temperature Rating: | -15°C to +70°C |
WARNING: California Prop 65
This M8 breakout board provides a convenient method of accessing all the contacts of an A-Coded, 3-Pin, Male M8 connector. Each of the 3 connections as well as the shell are brought out to a screw terminal for fast and secure termination to wires. This board also features a prototyping area to enable in-circuit modifications as well as easy probing/diagnostics. The prototyping grid has a standard 0.1" pattern to enable compatibility with a variety of components. The DIN clips on this model allow it to be easily used with a 35mm DIN rail system, making this board perfect for industrial applications.
Mechanical Drawing
