- Breaks out all 8 contacts and the shield
- Screw terminals for fast connections
- Prototyping area for in-circuit modifications
- Easy access for probing and debugging
- Easily mounts on 35mm DIN rail
| Wire Range (stranded): | 16-24 AWG |
| Wire Range (solid): | 16-24 AWG |
| Connector: | 8P8C + Shield |
| PCB Surface Finish: | LF HASL |
| Temperature Rating: | -25°C to +70°C |
WARNING: California Prop 65
This RJ45 breakout board provides a convenient method of accessing all the contacts of an 8P8C connector, including the shield. Each of the 9 connections are brought out to a screw terminal for fast and secure termination to wires. This board also features a prototyping area to enable in-circuit modifications as well as easy probing/diagnostics. The prototyping grid has a standard 0.1" pattern to enable compatibility with a variety of components. The DIN clips on this model allow it to be easily used with a 35mm DIN rail system, making this board perfect for industrial applications.

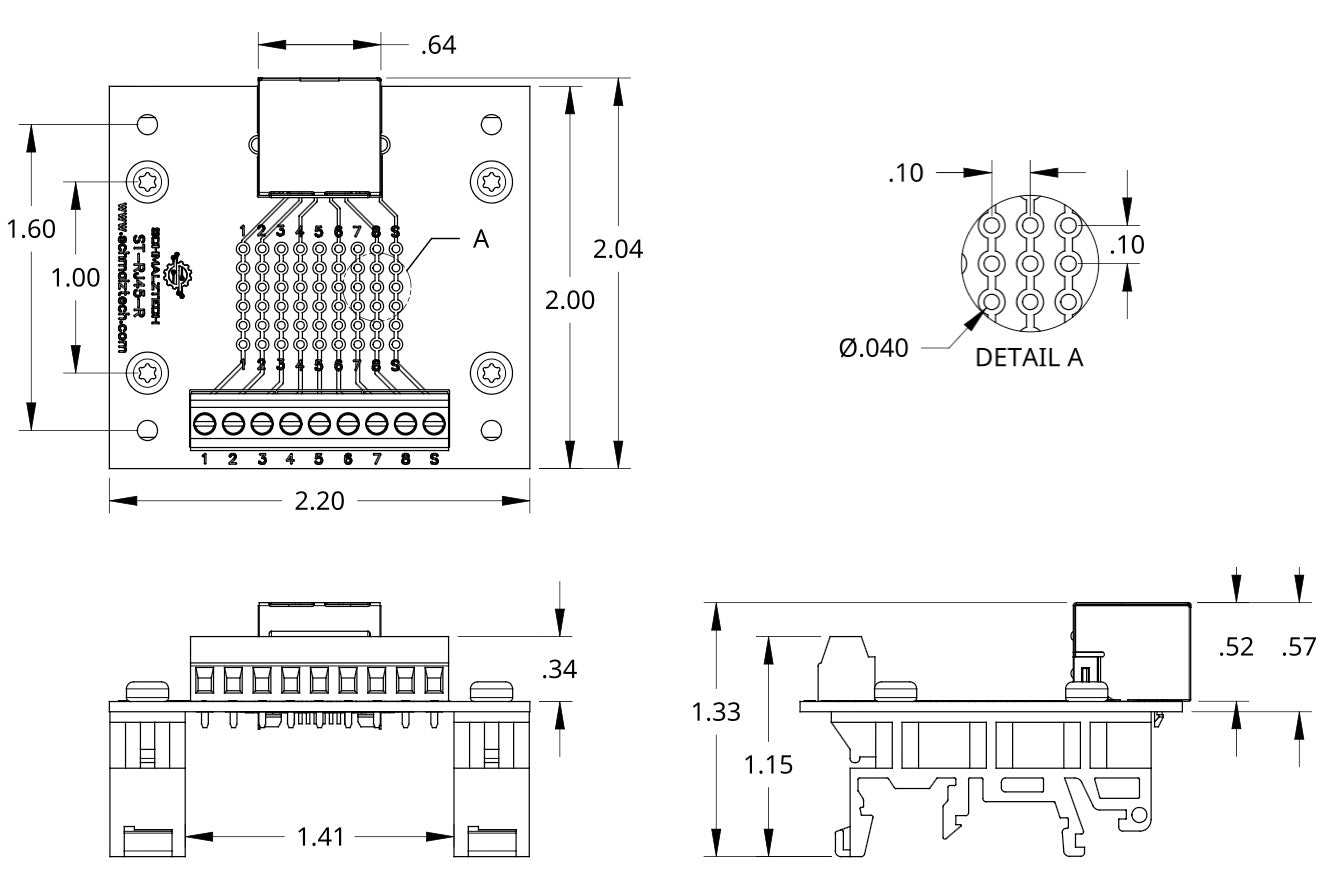

Mechanical Drawing
